Unlike open steel grating that rusts in wet-chemical environments, our FRP grating is manufactured using a proprietary double-layer resin infusion that creates a non-porous, UV-stabilized surface. This makes it the preferred walking surface for offshore oil rigs, battery recycling plants, and industrial fish farms where slip resistance, electrical non-conductivity, and resistance to hydrogen sulfide are mandatory. The grid pattern allows 85% liquid drainage while supporting forklift traffic. Each panel is trimmed to millimeter precision with optional beveled edges for trip-free installation.For project managers sourcing FRP grating for aggressive industrial environments, standard fiberglass grates often fail at the connection points due to resin starvation. Our solution uses a vacuum-assisted infusion process that eliminates dry spots, resulting in uniform bar thickness and a grit-coated top layer that exceeds OSHA slip resistance standards. Whether covering trench drains in a chemical plating line or flooring for pedestrian bridges near seawater, each 38mm or 25mm panel offers bidirectional strength. We also provide cut-to-size services with chamfered edges, plus optional UV-resistant topcoat for tropical outdoor use. Backed by 24-month warranty against delamination.
Brochão de Produtos da Hebei Fortis Technology Co., Ltd
Product Advantages
Corrosion Resistance
Unlike steel, our FRP grating is highly resistant to chemicals, moisture, and saltwater—perfect for harsh environments like marine platforms, wastewater treatment plants, and chemical factories.
Lightweight & Easy Installation
FRP grating is about 1/3 the weight of steel but offers comparable strength. This reduces transportation costs and allows for quick, labor-saving installation without heavy lifting equipment.
Slip-Resistant Surface
Available with grit-top or concave surfaces for excellent traction, ensuring safety in wet, oily, or icy conditions.
Non-Conductive
Electrically and thermally non-conductive, making it ideal for electrical rooms, substations, and railway platforms.
Low Maintenance
No painting, galvanizing, or regular upkeep needed. Simple water or steam cleaning keeps it looking new.
Customizable

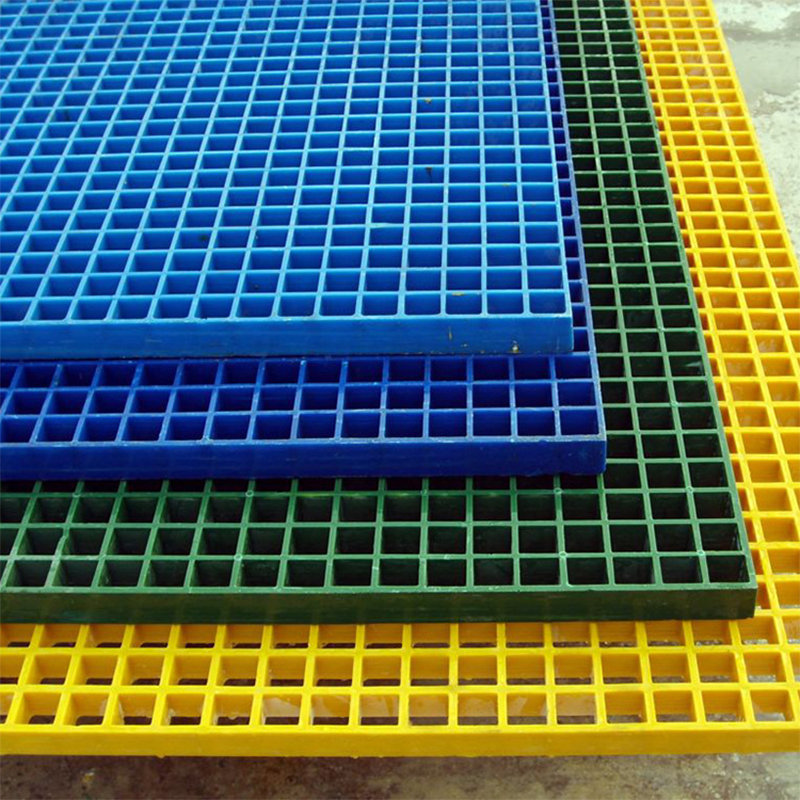

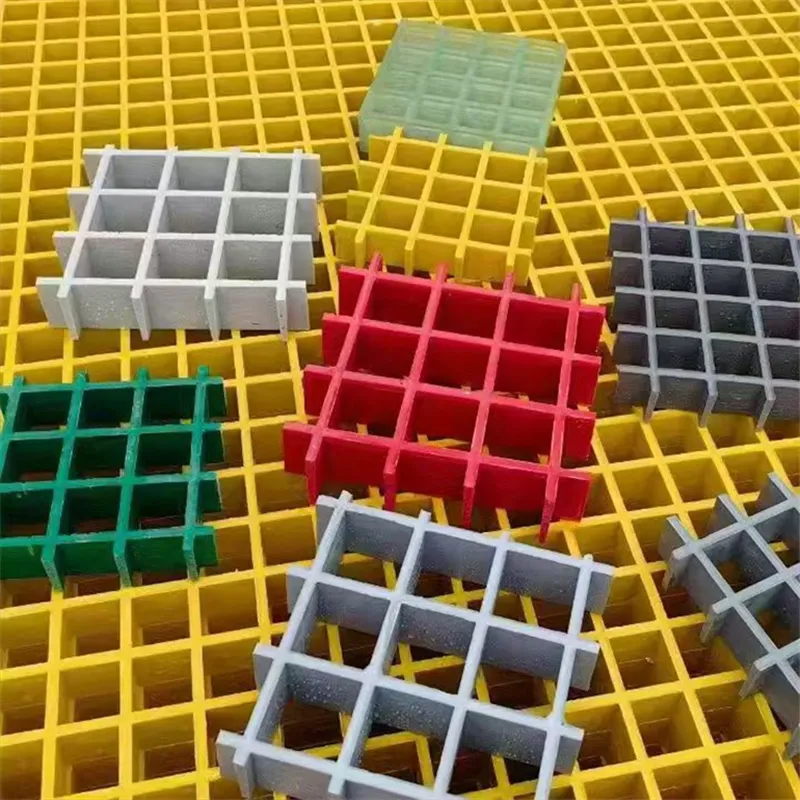

Comes in various colors (yellow, grey, green, etc.), mesh sizes, and thicknesses. Can be cut, drilled, or shaped on-site to fit any layout.
Long Service Life
With UV-resistant additives, our FRP grating withstands prolonged sunlight exposure and extreme temperatures (-40°C to 80°C), lasting 20+ years in most applications.
Eco-Friendly
Made from recyclable materials, and its long lifespan reduces waste compared to steel or wood alternatives.
Application Scenarios

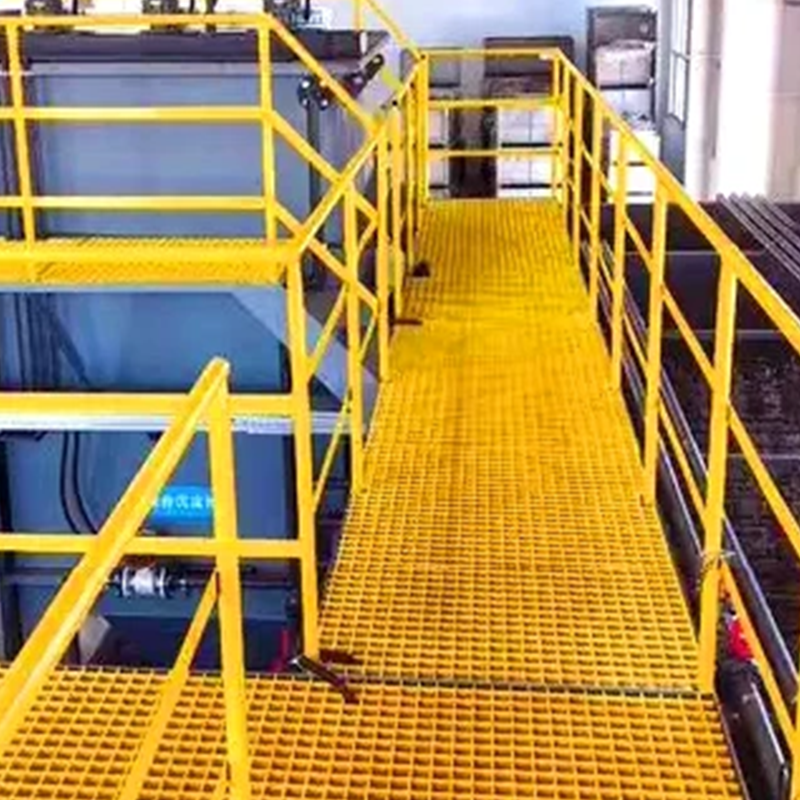

Petrochemical, pharmaceutical, paper, food processing plants: used as operating platform, stair tread, equipment walkway, trench cover plate, etc., to resist chemical splashing and corrosive atmosphere.

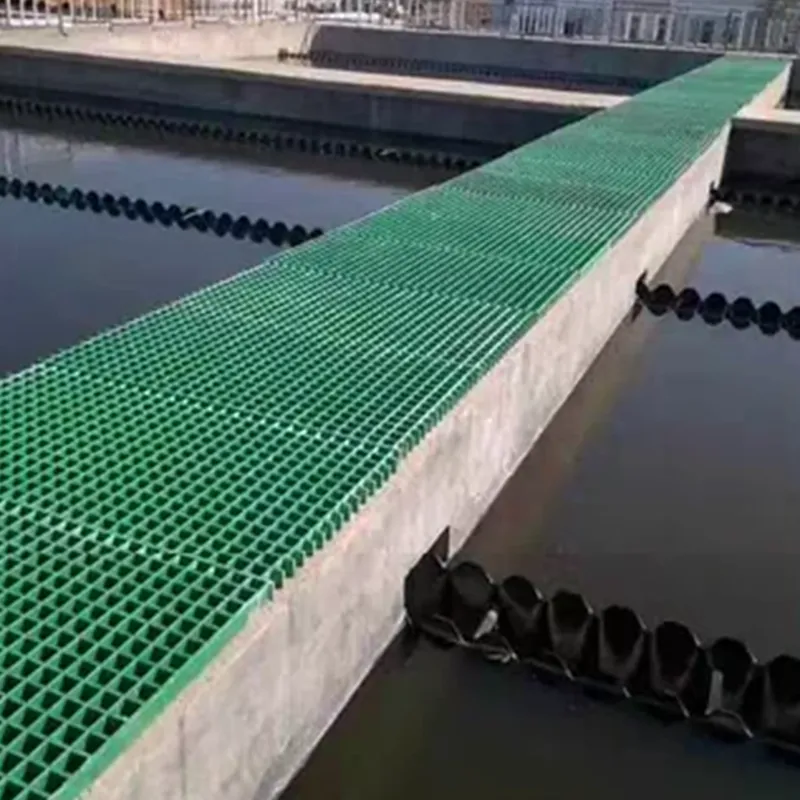

Sewage treatment plant, offshore platform: used as inspection walkway and grille cover plate, perfectly resistant to corrosion of seawater, hydrogen sulfide and humid environment.
Power plant, substation and electrical equipment room: used as cable trench cover plate and equipment inspection channel to ensure the safety of personnel using electricity.
Offshore oil platform, ship deck: anti-slip, light, resistant to seawater corrosion.
Food and beverage factory, slaughterhouse, clean workshop: FRP grid is pollution-free, easy to clean, no bacteria breeding, meet the hygienic requirements.
Landscape: used as tree pit cover plate, water boardwalk.
|
Product |
FRP grating |
||
|
|
|||
|
Type |
Mesh size(mm) |
Thickness(mm) |
Length×Width(mm) |
|
FT-G3825a |
38×38 |
25 |
1220×3660 |
|
FT-G3825b |
38×38 |
25 |
1225×4005 |
|
FT-G3830a |
38×38 |
30 |
1220×3660 |
|
FT-G3830b |
38×38 |
30 |
1225×4005 |
|
FT-G3838a |
38×38 |
38 |
1220×3660 |
|
FT-G3838b |
38×38 |
38 |
1225×4005 |
|
FT-G3840a |
38×38 |
40 |
1220×3660 |
|
FT-G3840b |
38×38 |
40 |
1225×4005 |
|
FT-G3850a |
38×38 |
50 |
1220×3660 |
|
FT-G3850b |
38×38 |
50 |
1225×4005 |
|
FT-G4025a |
40×40 |
25 |
1220×3660 |
|
FT-G4025b |
40×40 |
25 |
1225×4005 |
|
FT-G4030a |
40×40 |
30 |
1220×3660 |
|
FT-G4030b |
40×40 |
30 |
1225×4005 |
|
FT-G4038a |
40×40 |
38 |
1220×3660 |
|
FT-G4038b |
40×40 |
38 |
1225×4005 |
|
FT-G4040a |
40×40 |
40 |
1220×3660 |
|
FT-G4040b |
40×40 |
40 |
1225×4005 |
|
FT-G4050a |
40×40 |
50 |
1220×3660 |
|
FT-G4050b |
40×40 |
50 |
1225×4005 |
|
FT-G5025a |
50×50 |
25 |
1220×3660 |
|
FT-G5025b |
50×50 |
25 |
1225×4005 |
|
FT-G5030a |
50×50 |
30 |
1220×3660 |
|
FT-G5030b |
50×50 |
30 |
1225×4005 |
|
FT-G5038a |
50×50 |
38 |
1220×3660 |
|
FT-G5038b |
50×50 |
38 |
1225×4005 |
|
FT-G5040a |
50×50 |
40 |
1220×3660 |
|
FT-G5040b |
50×50 |
40 |
1225×4005 |
|
FT-G5050a |
50×50 |
50 |
1220×3660 |
|
FT-G5050b |
50×50 |
50 |
1225×4005 |
|
FT-Gnn |
customized |
customized |
customized |
