Engineered for concrete reinforcement manufacturers switching from steel, our FRP rebar production line delivers continuous pultrusion with ±0.1mm diameter tolerance. Unlike standard lines, we include an inline digital flaw detector and automatic resin-bath temperature compensation for tropical or cold climates. The line supports sand-coated, ribbed, and smooth surface profiles without changing main dies. Backed by 24/7 remote troubleshooting and a spare-parts warehouse in Shanghai. Ideal for buyers seeking a balance between initial investment and long-term output stability.
Brochão de Produtos da Hebei Fortis Technology Co., Ltd
Product Advantages
True Pultrusion Stability
Servo-driven puller with closed-loop tension control eliminates surface ripple, even at 15 m/min continuous operation.
Fast Size Changeover
Replaceable die cassette system lets you switch between Ø6mm and Ø25mm rebar in under 40 minutes – no realignment required.
Low-Breakage Resin Bath
Vertical dip + squeeze roller design reduces fiber breakage by 30% compared to open-tank systems, especially for basalt fiber.
Embedded Quality Check
Inline laser micrometer and ultrasonic flaw detector automatically mark defective sections and trigger flying cutter rejection.
Energy-Saving Heating
PID-controlled 3-zone ceramic heaters + thermal recovery duct. 18% lower power consumption per ton of output.
Dual Winding Option

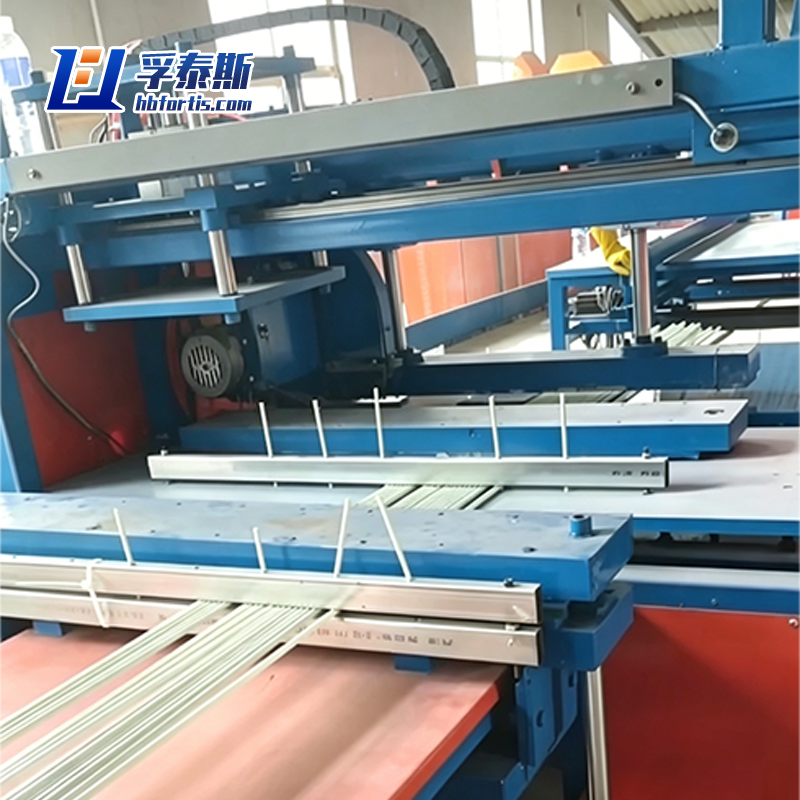

Choose between automatic recoiler for spooled rebar (up to 100m rolls) or high-speed flying saw for cut-to-length bars (2–12m).
Designed for Harsh Sites
IP54 control cabinet, dust-sealed linear guides, and tropical-grade resin pump seals – works reliably at 45°C or 90% humidity.
Spare Parts Commitment
Common wear parts (dies, puller pads, cutter blades) shipped from our Ningbo warehouse within 48 hours globally.
Parameter Specifications
|
Product |
FRP Rebar Production Line |
||||
|
|
|||||
|
Double-Strand FRP Rebar Production Specification Range: (Φ4-32mm) |
|||||
|
Diameter |
Linear Weight |
Production Speed (m/min) |
Effective Time |
Daily Output |
Weight (kg) |
|
4 |
0.025 |
3 |
1300 |
7800 |
195 |
|
5 |
0.039 |
3 |
1300 |
7800 |
304.2 |
|
6 |
0.056 |
2.5 |
1300 |
6500 |
364 |
|
8 |
0.1 |
2.5 |
1300 |
6500 |
650 |
|
10 |
0.16 |
2 |
1300 |
5200 |
832 |
|
12 |
0.23 |
2 |
1300 |
5200 |
1196 |
|
14 |
0.3 |
1.8 |
1300 |
4680 |
1404 |
|
16 |
0.4 |
1.6 |
1300 |
4160 |
1664 |
|
18 |
0.5 |
1.5 |
1300 |
3900 |
1950 |
|
20 |
0.63 |
1.4 |
1300 |
3640 |
2293.2 |
|
22 |
0.76 |
1.2 |
1300 |
3120 |
2371.2 |
|
24 |
0.9 |
1 |
1300 |
2600 |
2340 |
|
25 |
0.98 |
0.8 |
1300 |
2080 |
2038.4 |
|
28 |
1.23 |
0.8 |
1300 |
2080 |
2558.4 |
|
30 |
1.14 |
0.6 |
1300 |
1560 |
1778.4 |
|
32 |
1.6 |
0.6 |
1300 |
1560 |
2496 |
|
|
|||||
|
Four-Strand FRP Rebar Production Specification Range: (Φ4-16mm) |
|||||
|
Diameter |
Linear Weight |
Production Speed (m/min) |
Effective Time |
Daily Output |
Weight (kg) |
|
4 |
0.025 |
3 |
1300 |
15600 |
390 |
|
5 |
0.039 |
3 |
1300 |
15600 |
608.4 |
|
6 |
0.056 |
2.5 |
1300 |
13000 |
728 |
|
8 |
0.1 |
2.5 |
1300 |
13000 |
1300 |
|
10 |
0.16 |
2 |
1300 |
10400 |
1664 |
|
12 |
0.23 |
2 |
1300 |
10400 |
2392 |
|
14 |
0.3 |
1.8 |
1300 |
9360 |
2808 |
|
16 |
0.4 |
1.6 |
1300 |
8320 |
3328 |
